48/51.2V Wall-mounted Battery 10KWH
Features
1.Convenient:Wall mounted battery&compact design, ease of installation.
2.Compatible:Compatible with multiple inverters;Multiple communication;interfaces RS232, RS485, CAN.
3.Compliant:Ip51 Protection;indoor application.
4.Scalable: Use of parallel connection;from 2 to 10 modules.
5.Sufficient :High energy density, 110Wh/kg.
6.Safe :Multiple protection;LiFePO4 material, safe and long life.

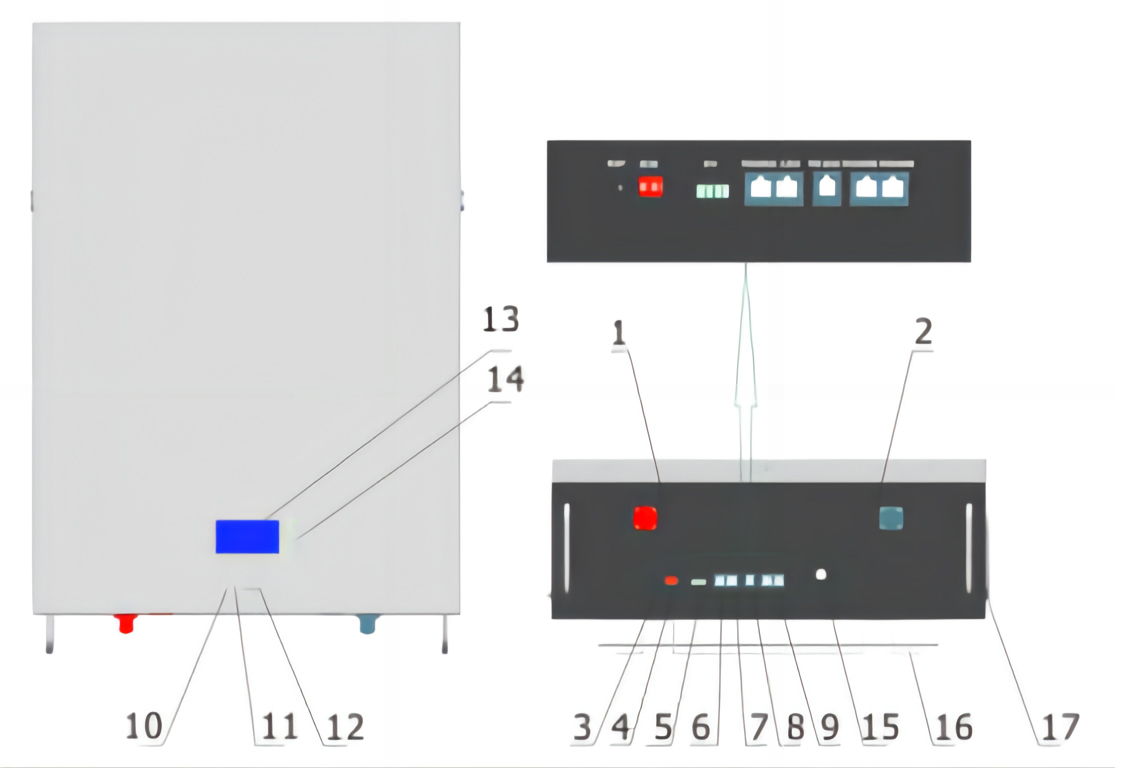

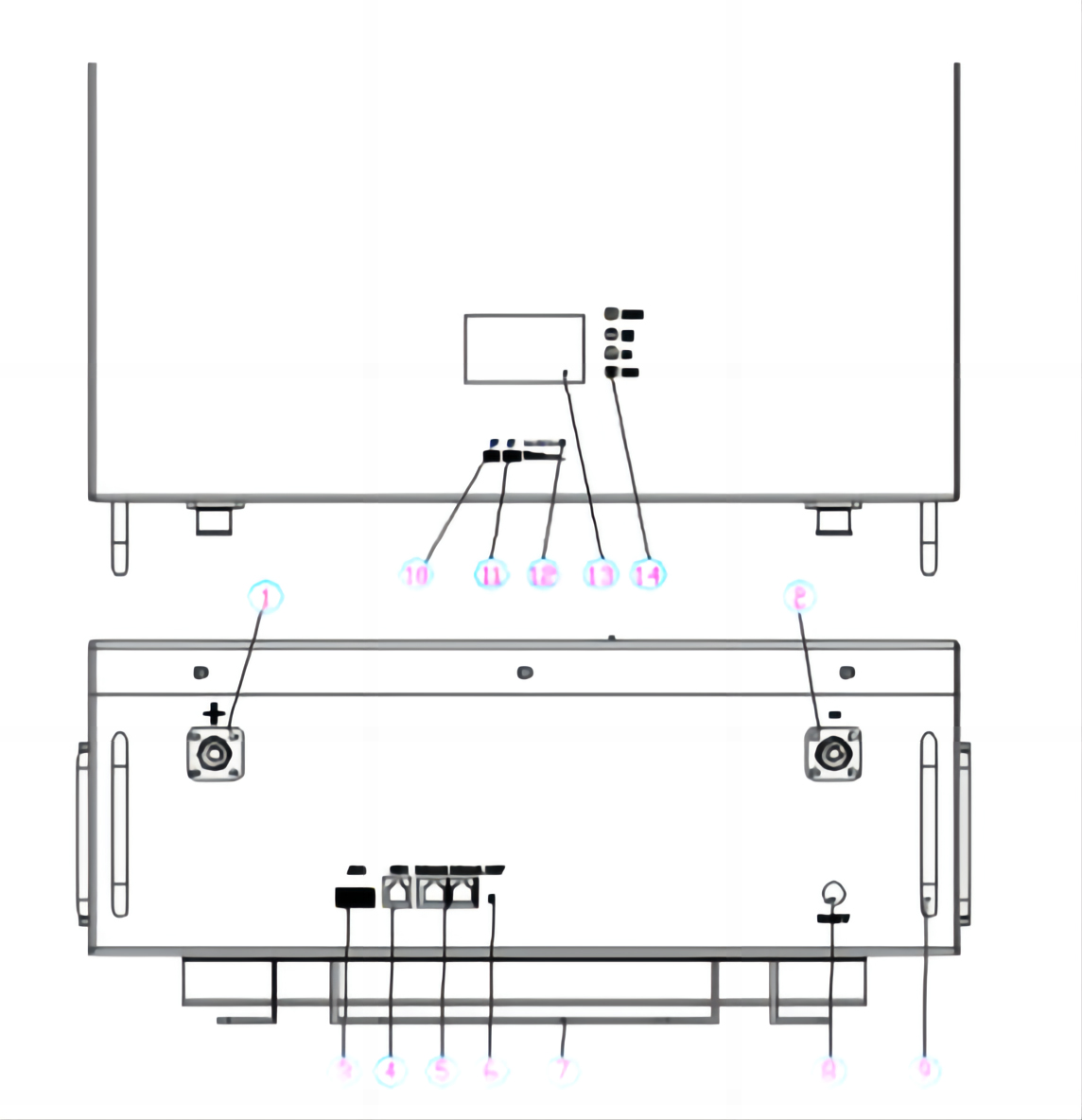

Product Details Display
Product Specification
|
No. |
Description |
Silk-scree |
Remark |
|
1 |
Pack positive pole |
P+ |
Output terminal |
|
2 |
Pack negative pole |
P- |
Output terminal |
|
3 |
reset |
|
|
|
4 |
ADS Coder |
ADS |
Set Battery address code |
|
5 |
DRY connect port |
DRY CONTACT |
|
|
6 |
485A communication port |
RS485A |
Connect to inverter |
|
7 |
CAN communication port |
CAN |
Connect to inverter |
|
8 |
RS232 communication port |
RS232 |
Host software |
|
9 |
RS485B communication port |
RS485B |
Parallel use |
|
10 |
Run LED indication |
RUN |
|
|
11 |
ALARM LED indication |
ALM |
Lift heavy objects |
|
12 |
Capacity LED indication |
|
|
|
13 |
LCD |
|
|
|
14 |
LCD key |
|
|
|
15 |
Power switch |
ON/OFF |
|
|
16 |
Fixed bracket |
|
|
|
17 |
handle |
|
|
No. |
Description |
Silk-screen |
Remark |
|
1 |
Pack positive pole |
P+ |
Output terminal |
|
2 |
Pack negative pole |
P- |
Output terminal |
|
3 |
ADS Coder |
ADS |
Set Battery address code |
|
4 |
CAN communication port |
CAN/RS485A |
Connect to inverter |
|
5 |
485B communication port |
RS485B |
Connect to next battery |
|
6 |
port Reset button |
RST |
For reset the batter |
|
7 |
DRY connect port |
DRY CONTACT |
|
|
8 |
Power switch |
ON/OFF |
|
|
9 |
handle |
|
|
|
10 |
Run LED indication |
RUN |
|
|
11 |
ALARM LED indication |
ALM |
Lift heavy objects |
|
12 |
Capacity LED indication |
|
|
|
13 |
LCD |
|
|
|
14 |
LCD key |
|
Parameter information
|
PERFORMANCE SPECIFICATIONS |
|
|
Model |
TH-48200-W |
|
Nominal Voltage |
48V |
|
Cell model/Configuration |
3.2V100Ah(ANC)/15S2P |
|
Capacity(Ah) |
200AH |
|
Rated Energy(KWH) |
9.6KWH |
|
Usable Energy(KWH) |
8.64KWH |
|
Max.Charge/Discharge Current(A) |
100A/100A |
|
Voltage Range(Vdc) |
48-56.5V |
|
Scalability |
Up to 10parallel |
|
Communication |
RS232-PC.RS485(B)-BATRS485(A]-Inverter,Canbus-Inverter |
|
Cycle Life |
≥6000cycles@25C，90% DOD，60%EOL |
|
Design Life |
≥15 Years (25C) |
|
MECHANICAL SPECIFICATIONS |
|
|
Weight(Approx)(KG) |
93kg |
|
Dimension(W/D/H)(mm) |
485*690*186(226 Including hanger)mm |
|
Installation Mode |
Wall hanging |
|
IP Grade |
lp21 |
|
SECURITY AND CERTIFICATION |
|
|
Safety(Pack) |
UN38.3.MSDS.IEC62619(CBCE-EMCUL1973 |
|
Safety(Cell) |
UN38.3.MSDS.IEC62619.CE.UL1973.UL2054 |
|
Protection |
BMS, Breaker |
|
ENVIRONMENTAL SPECIFICATIONS |
|
|
Operating Temperature(℃) |
Charge:-10C~50;Discharge:-20C-50℃ Altitude (m) |
|
Altitude(m) |
≤2000 |
|
Humidity |
≤95%(Non-condensing) |

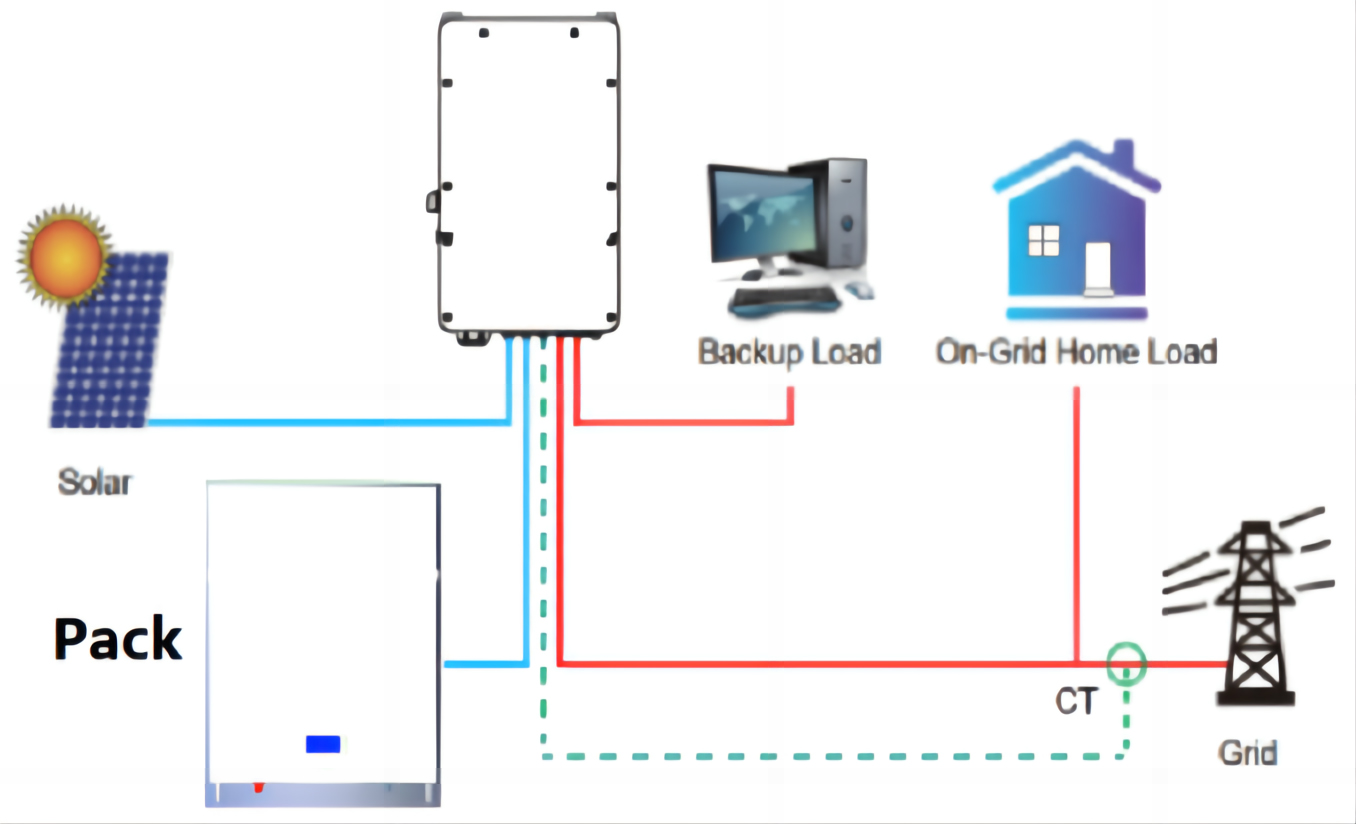

Connection Diagram

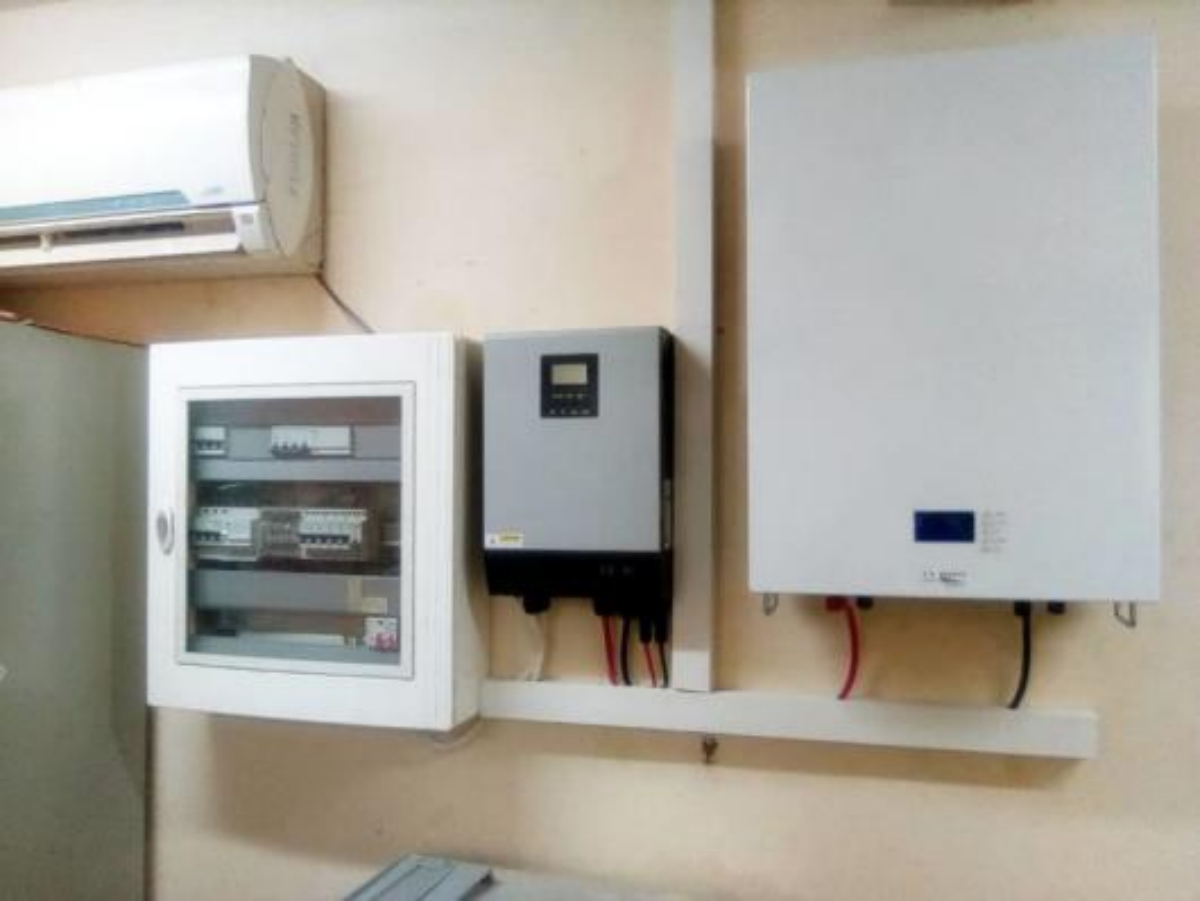

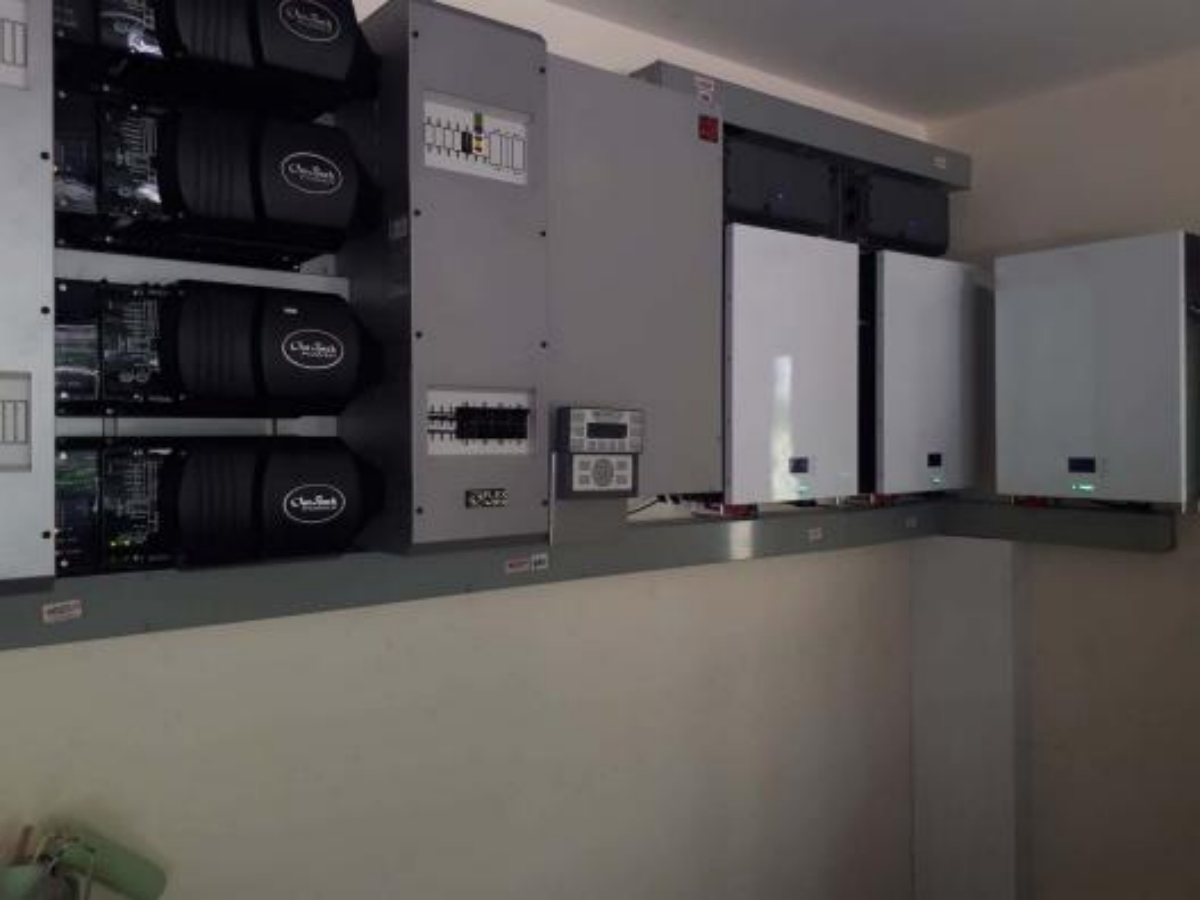

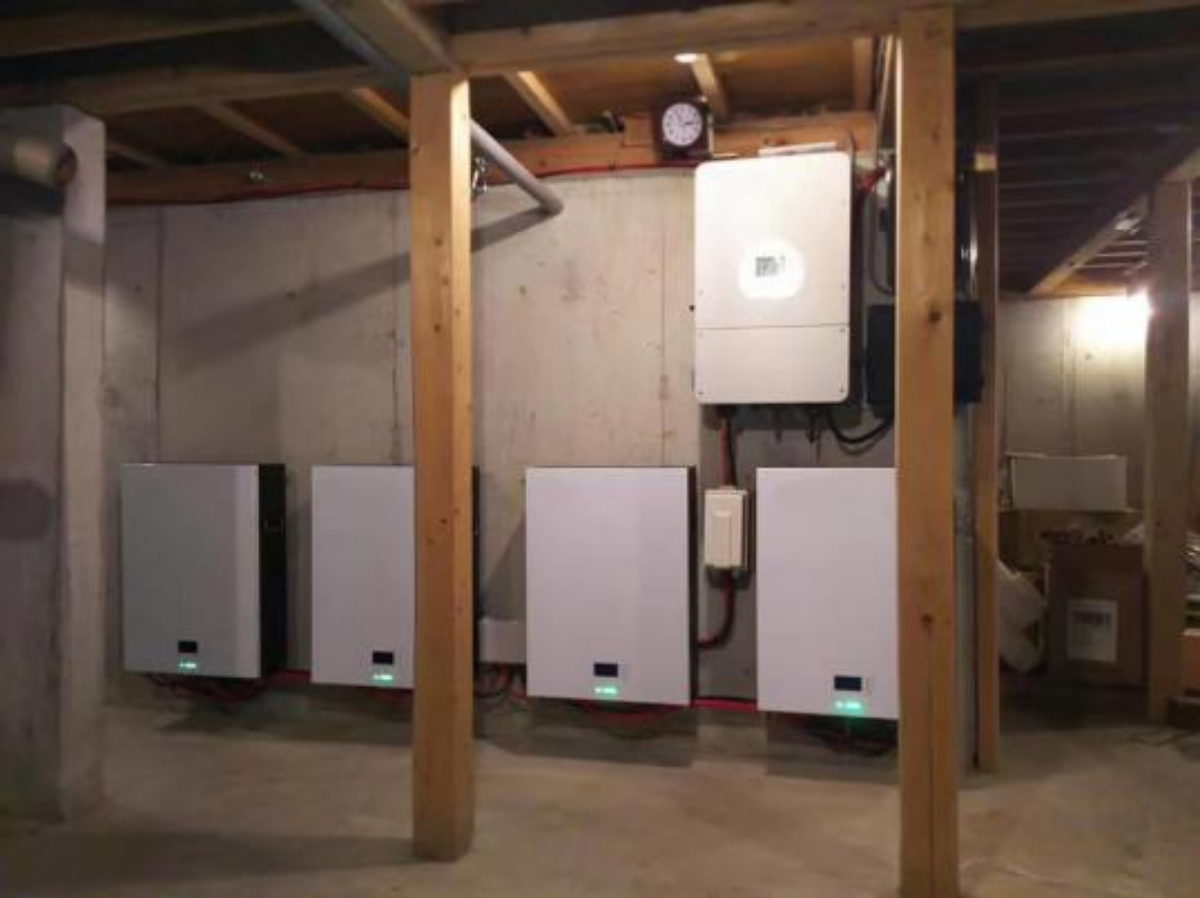

Application Scenarios
