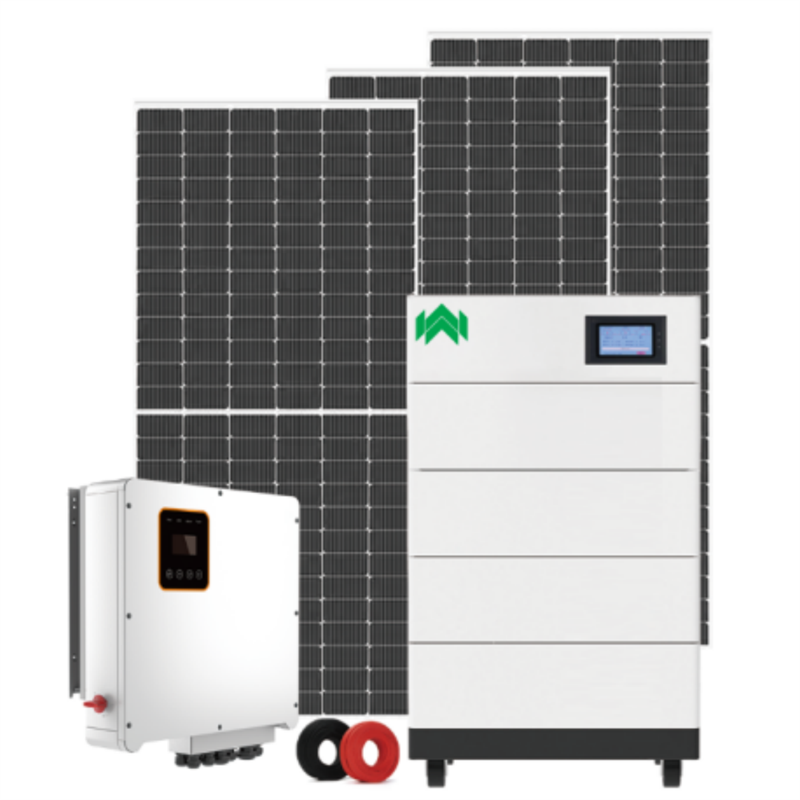

Stacked High Voltage Household Energy Storage Battery

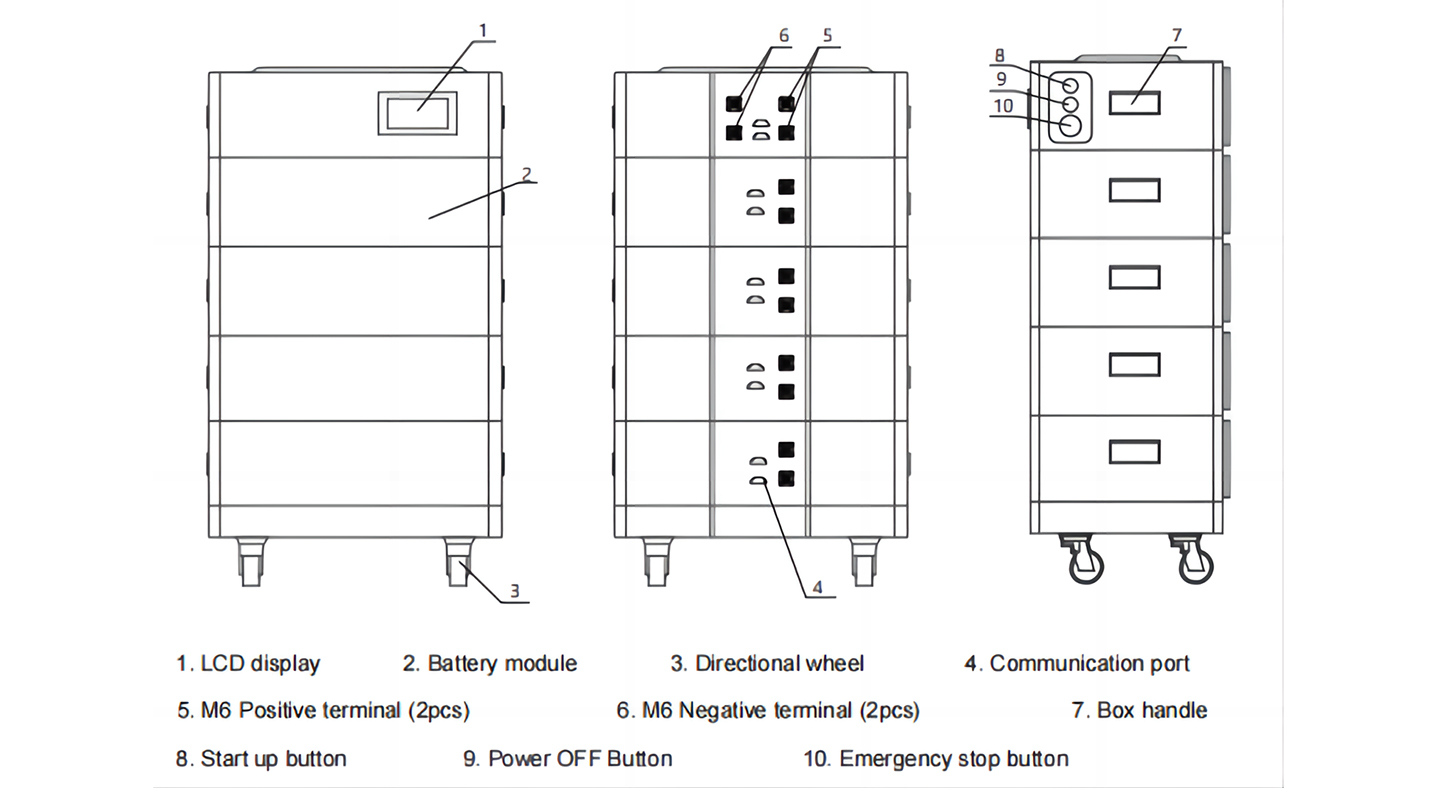

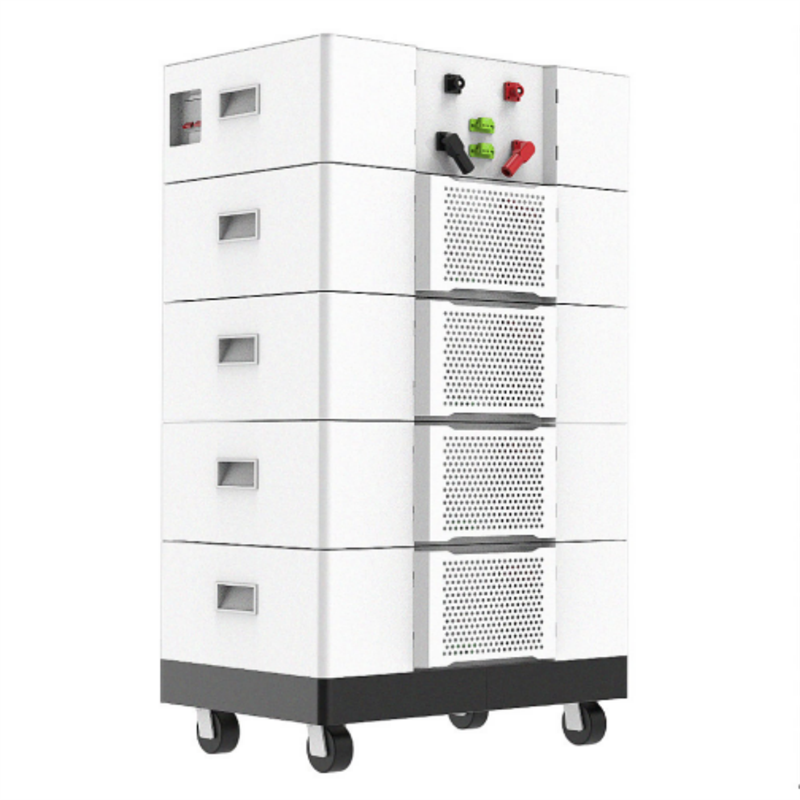

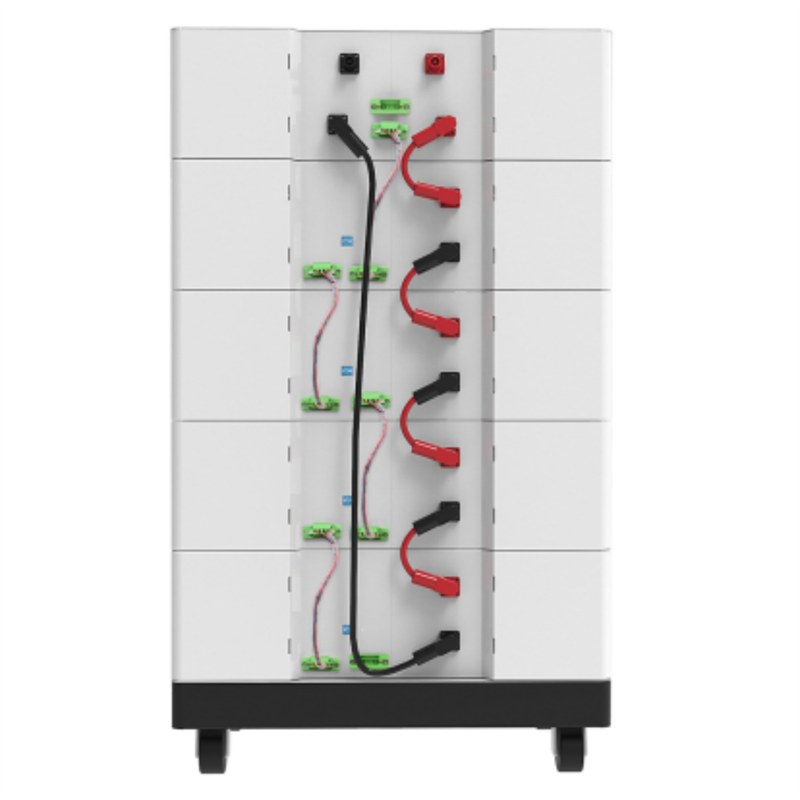

Product Details Display
Product Introduction
The high -voltage home energy storage battery adopts a modular stack design method, allowing multiple battery modules with controlling collection systems to stack stacking series and manages the general control management system.
A single module has two specifications of 48V100AH and 96V50AH. It is up to 384V-8pcs 48V-40KWH, which matches the 8 ~ 15KW mixed network inverter.
The domestic A -class iron phosphate batteries (CATL,EVE), the number of cycles exceeded 6000 times. BMS is compatible with various types of inverters on the market (including Growatt, Goodwe, Deye, LUXPOWER, etc.)
Features
1.Capable of High-Powered Emergency-Backup and Off-Grid Functionality.
2.Highest Efficiency Thanks to a Real High-Voltage Series Connection.
3.Built -in fire extinguishing device, automatic processing of super -early warning thermal discharge state.
4.The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use.
5.Grand A Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power.
6.Compatible With Leading High Voltage Battery Inverters.
7.Highest Safety Standards.
Product Specification
|
HVM15S100BL |
HVM30S100BL |
HVM45S100BL |
HVM60S100BL |
|
|

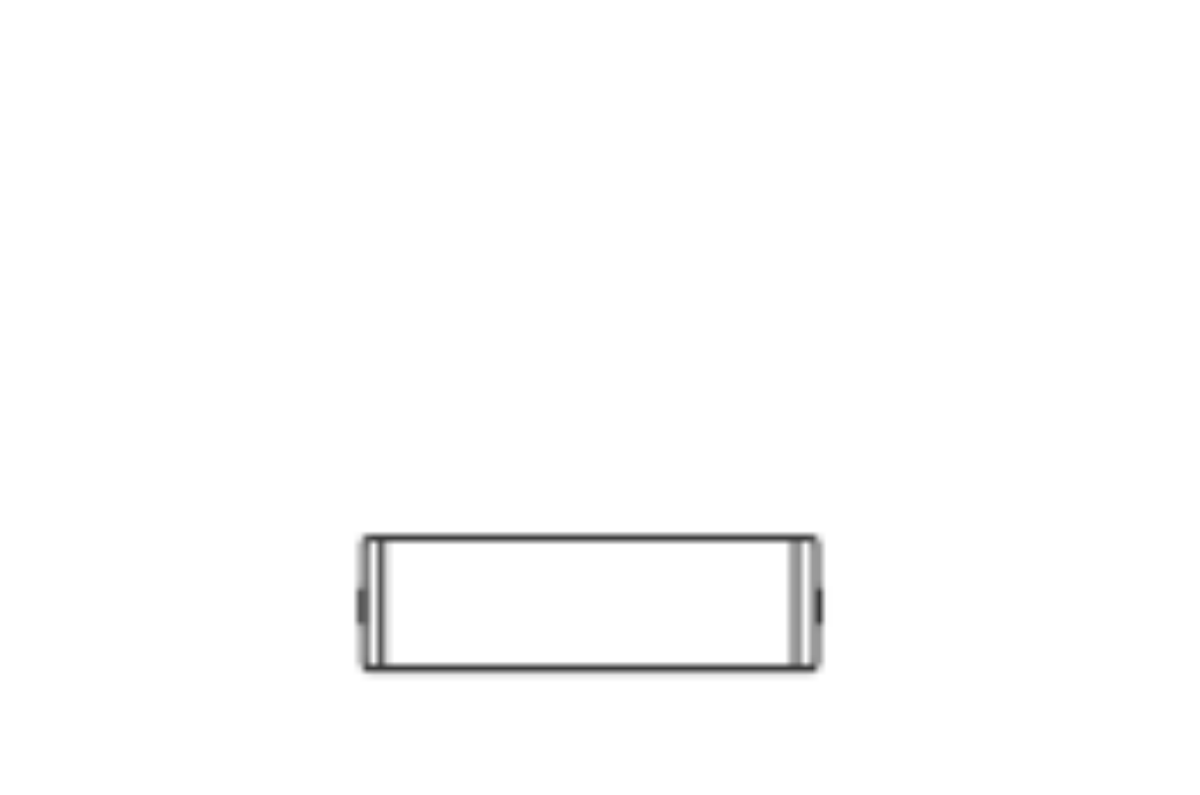

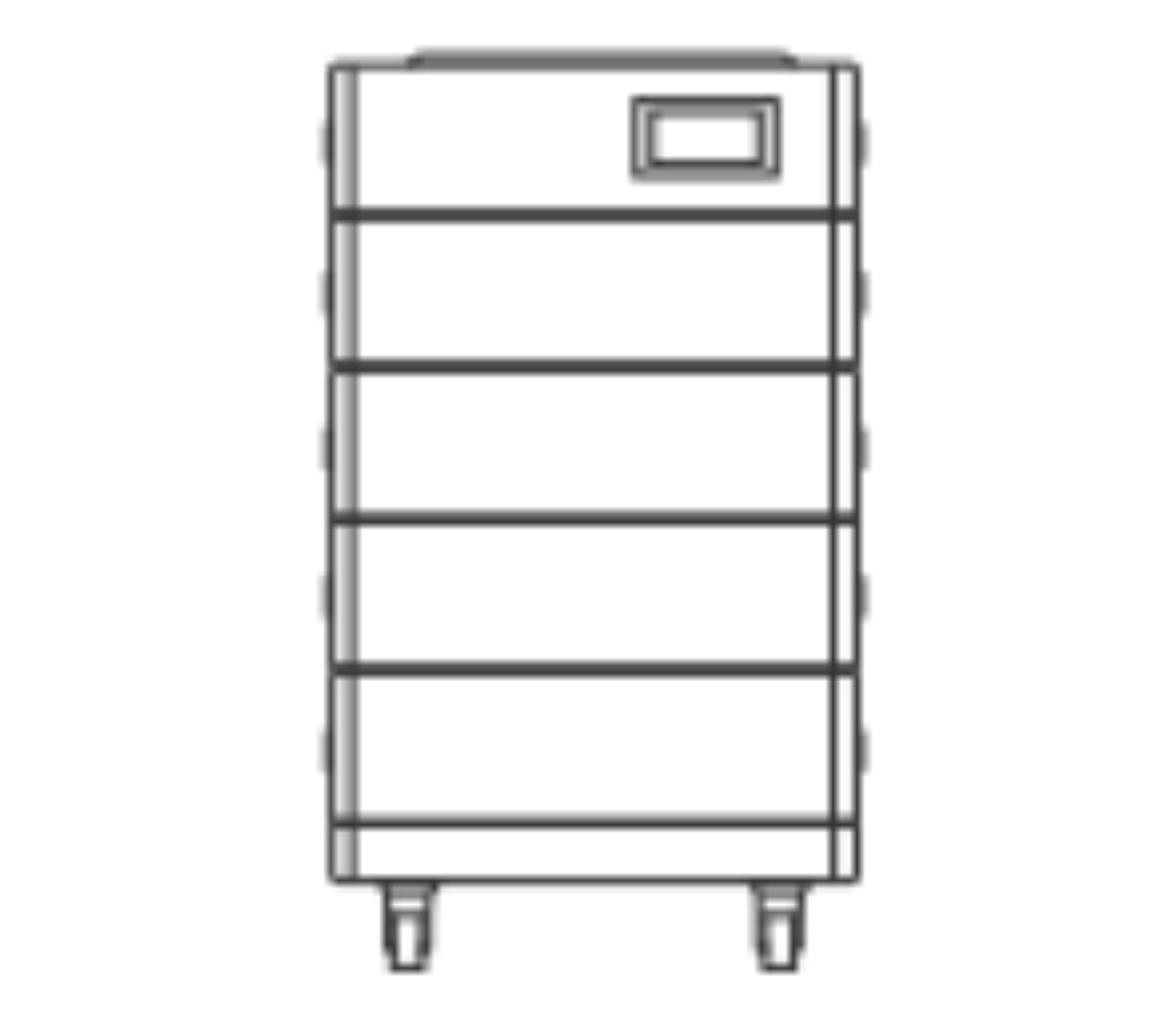

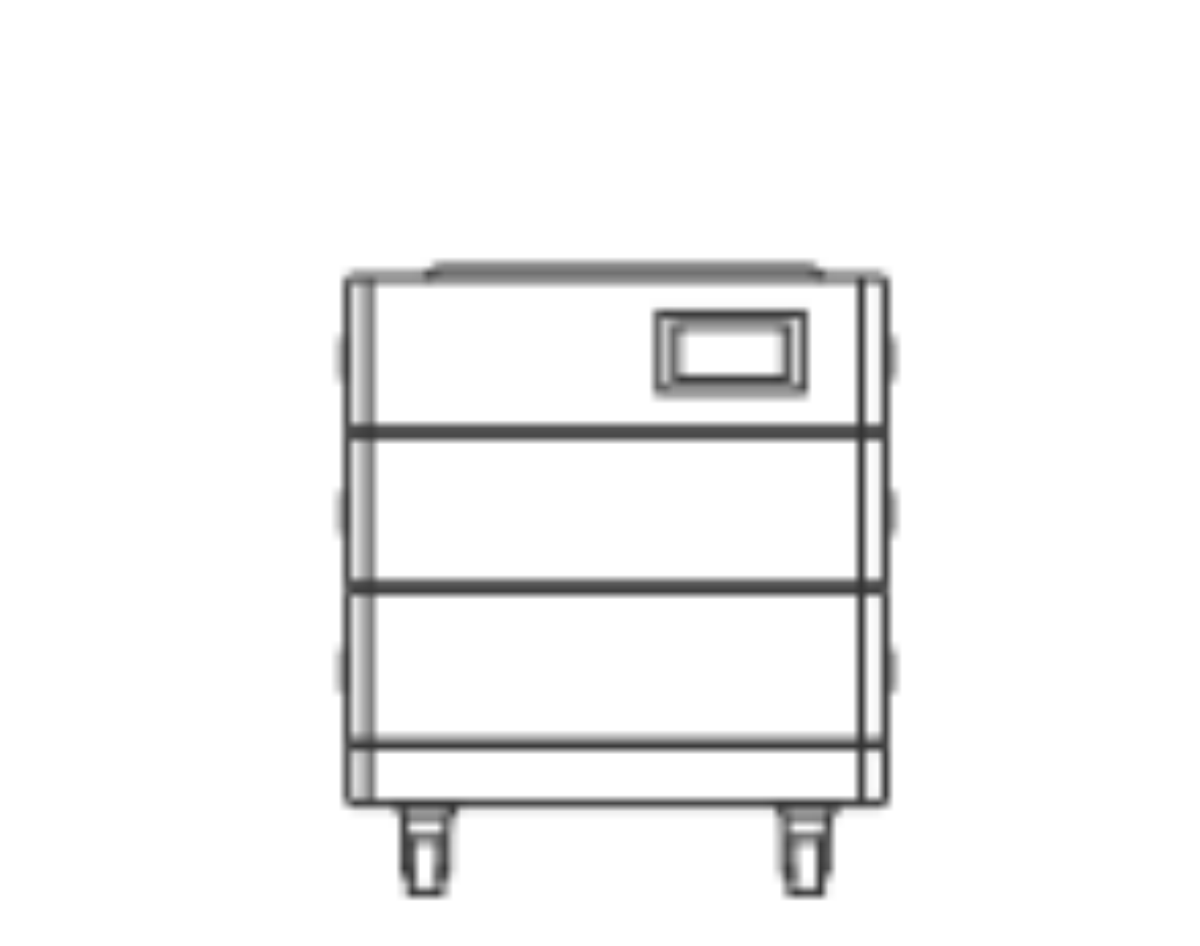

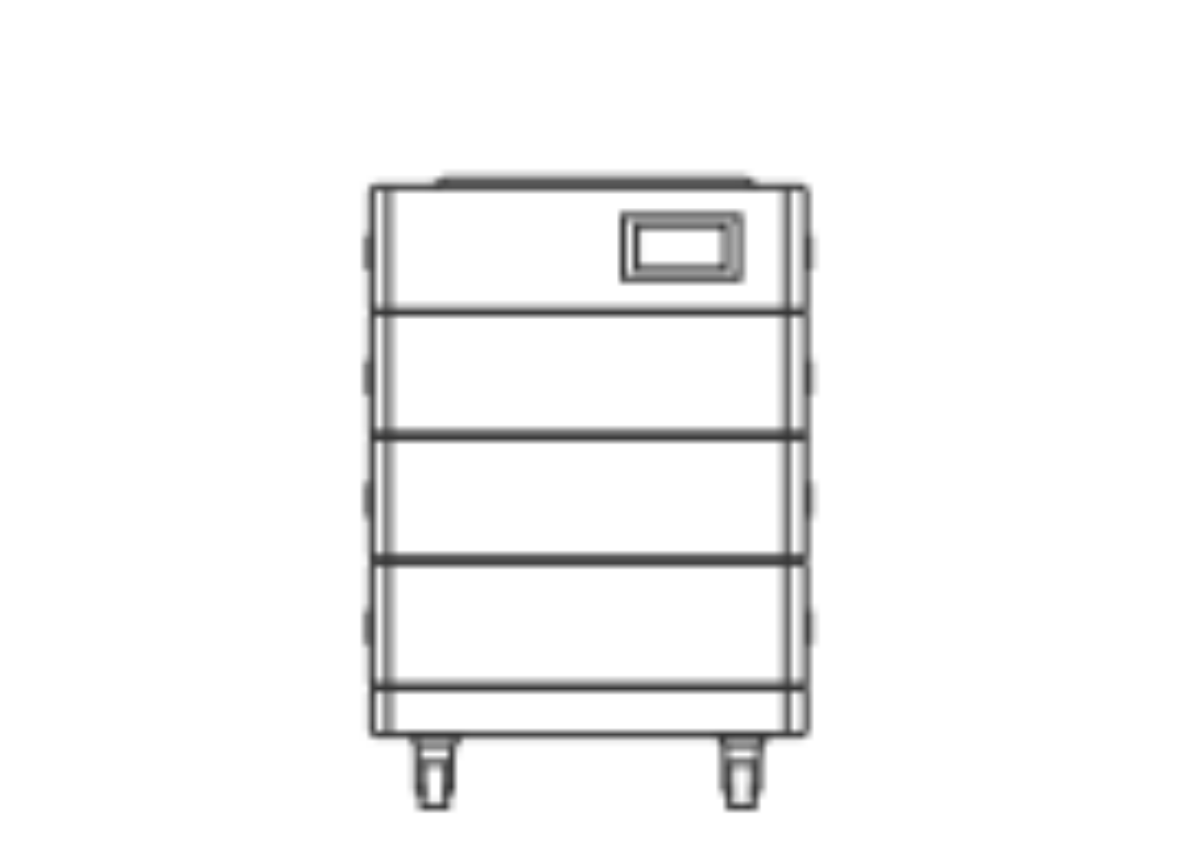

Module display |
|
|
|
|
|
Number of Modules |
1 |
2 |
3 |
4 |
|
Battery capacity |
100Ah |
100Ah |
100Ah |
100Ah |
|
Voltage |
48V |
96V |
144V |
192V |
|
Battery energy |
4.8kwh |
9.6kwh |
14.4kwh |
19.2kwh |
|
Size(LxWxH) |
570x380x167mm |
570×380×666mm |
570x380x833mm |
570x380x1000mm |
|
Weight |
41kg |
107kg |
148kg |
189kg |
|
Standard charging current |
20A |
20A |
20A |
20A |
|
|
HVM75S100BL |
HVM90S100BL |
HVM105S100BL |
HVM120S100BL |
|

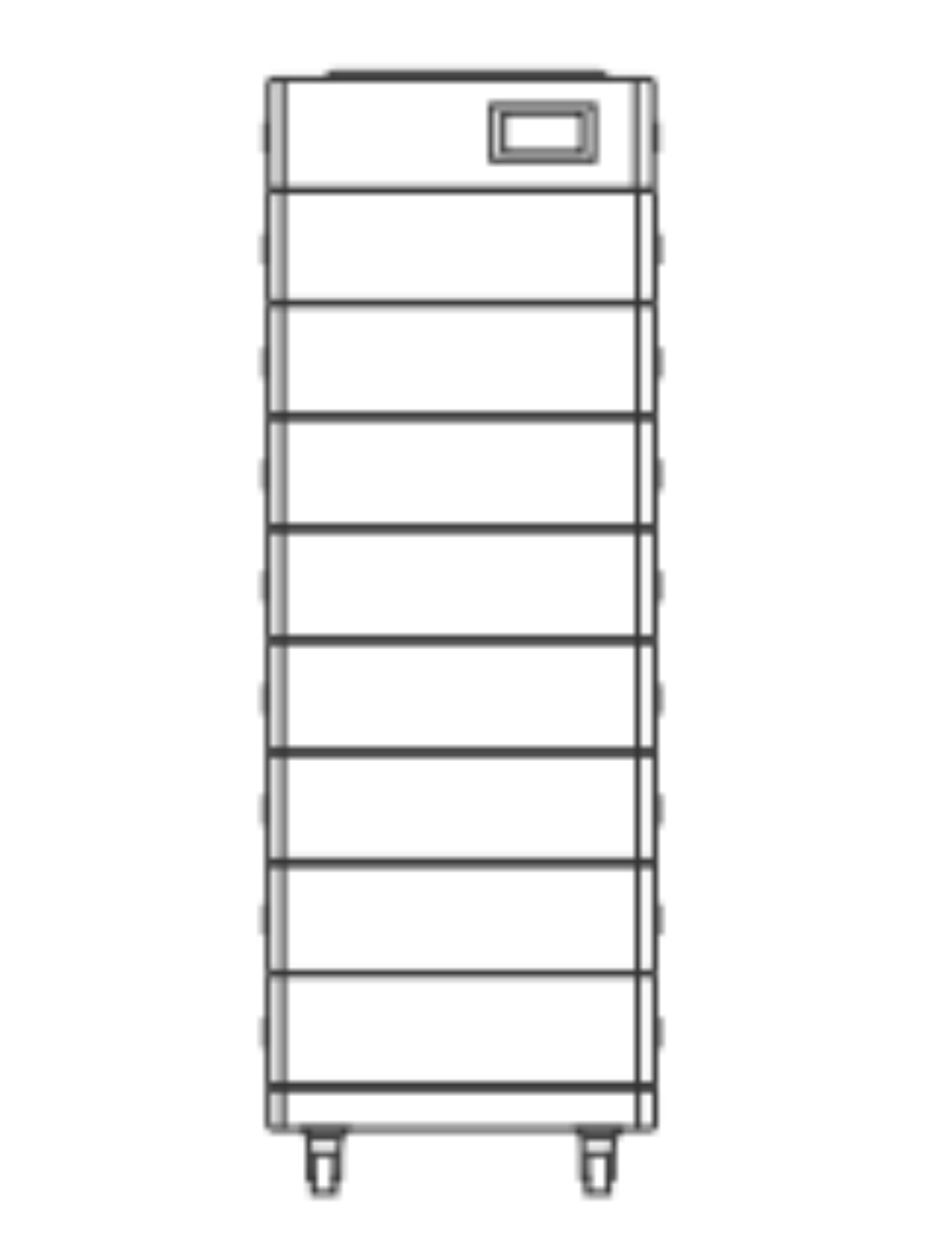

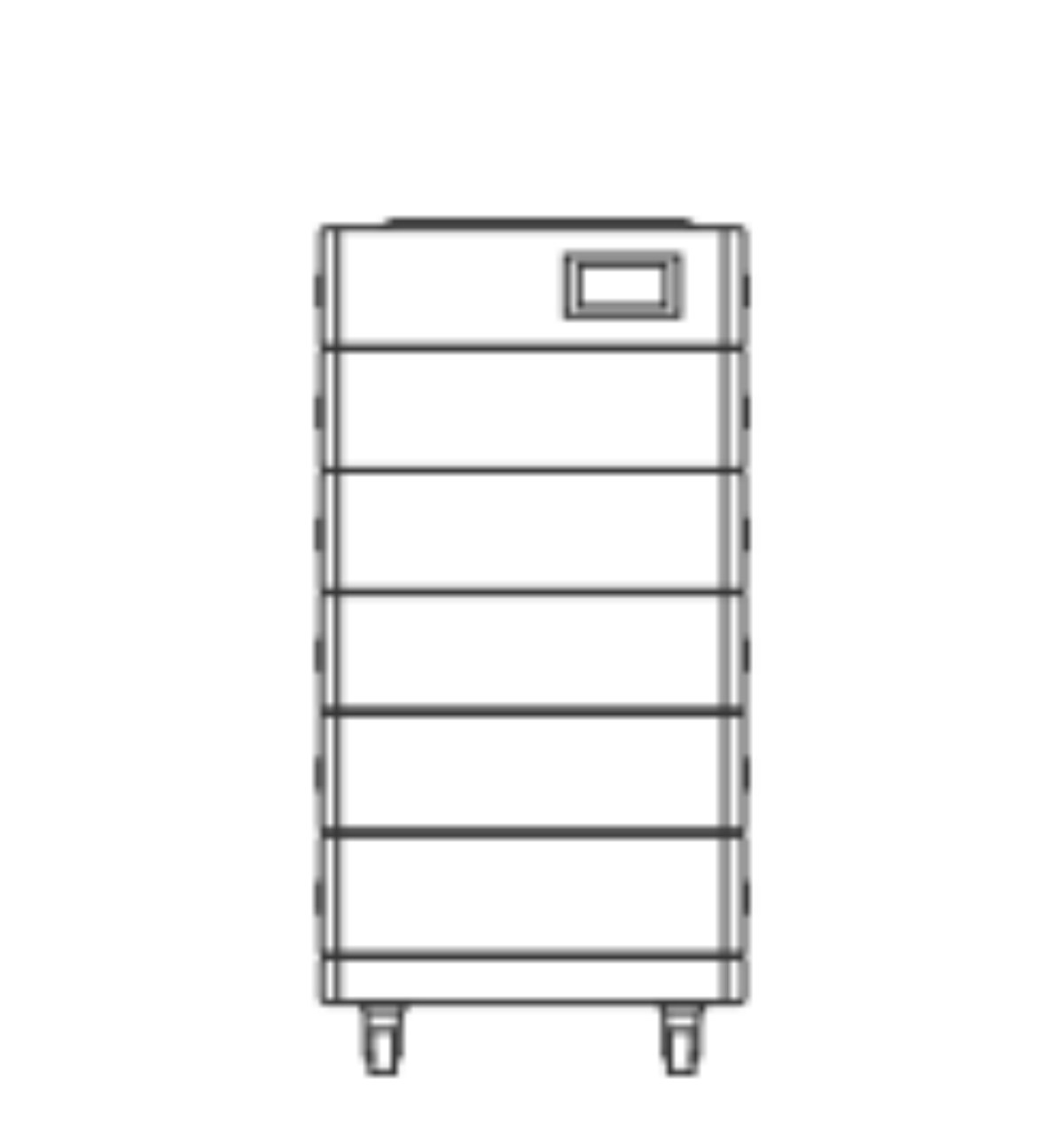

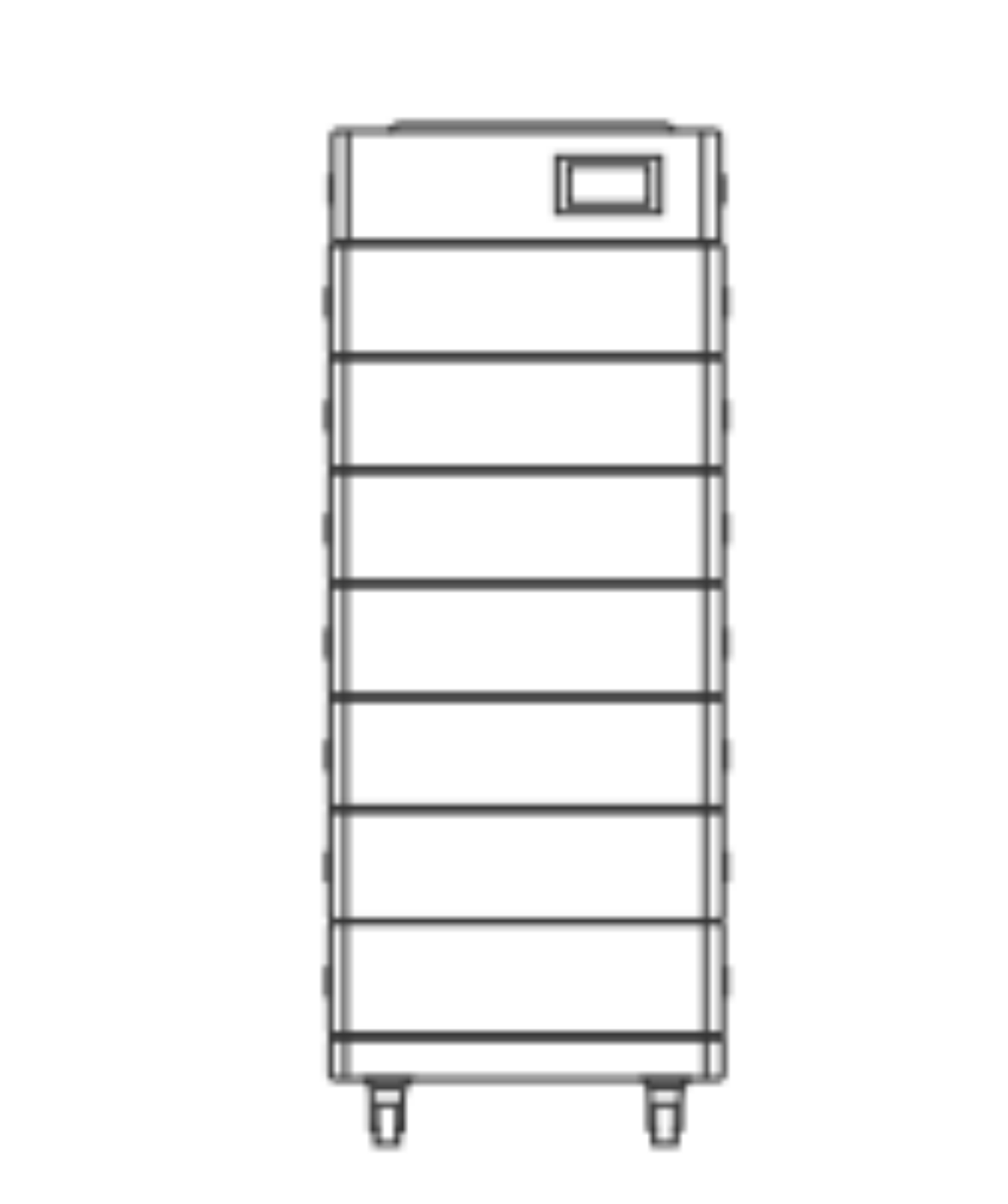

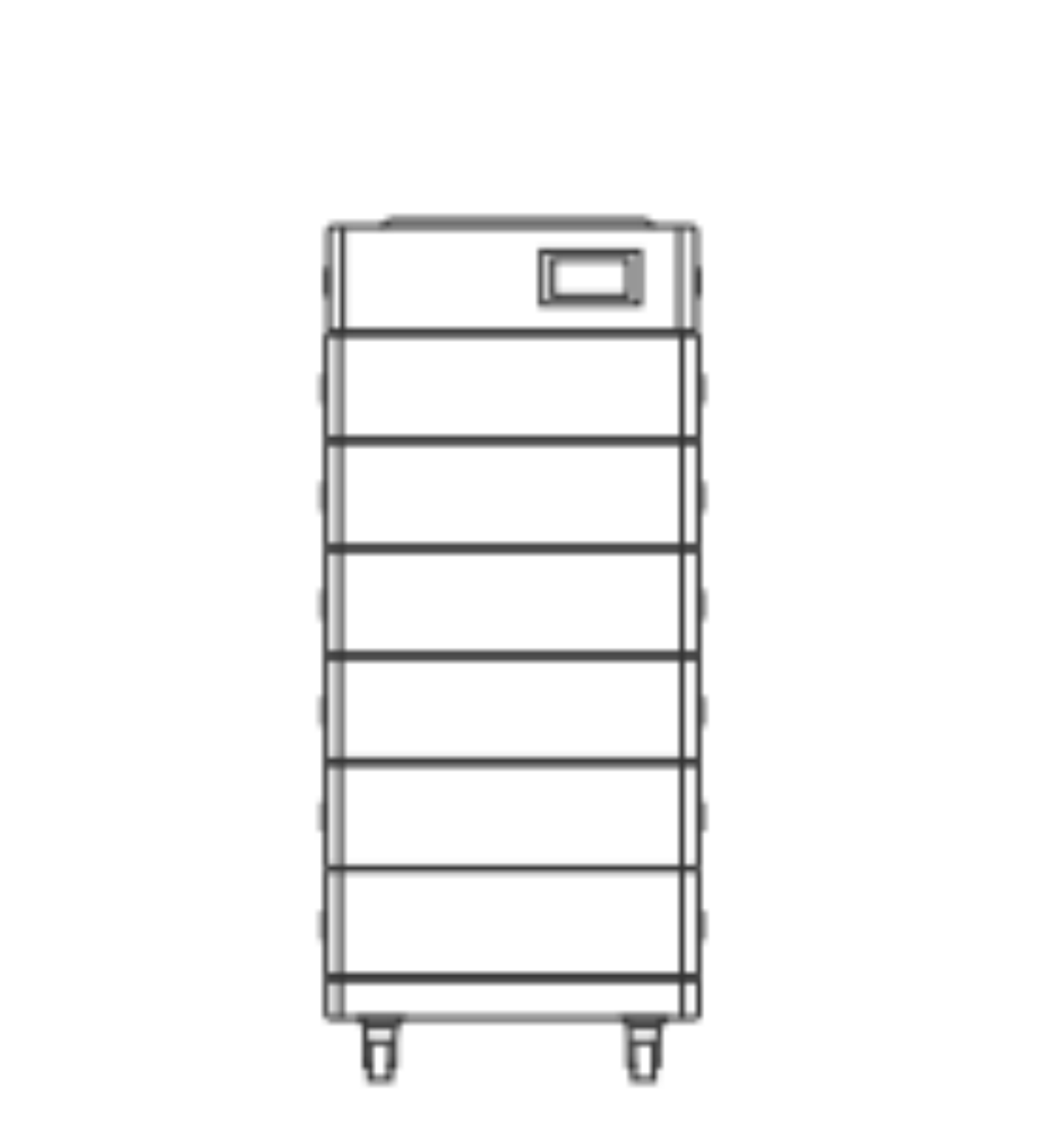

Module display |
|
|
|
|
|
Number of Modules |
5 |
6 |
7 |
8 |
|
Battery capacity |
100Ah |
100Ah |
100Ah |
100Ah |
|
Voltage |
240V |
288V |
366V |
384V |
|
Battery energy |
24kwh |
28.8kwh |
33.6kwh |
38.4kwh |
|
Size(LxWxH) |
570x380x1167mm |
570x380x1334mm |
570x380x1501mm |
570x380x1668mm |
|
Weight |
230kg |
271kg |
312kg |
353kg |
|
Standard charging current |
20A |
20A |
20A |
20A |
|
Battery Type |
Nominal Voltage |
Operating voltage range |
IP protection |
Installation method |
Operating temperature |
|
Lithium iron Phosphate(LFP) |
48V |
80-438V |
IP54 |
Naturally placed |
Discharge: -10 ° C ~ 60 ° C, Charging: 0 ° C ~ 60 ° C |

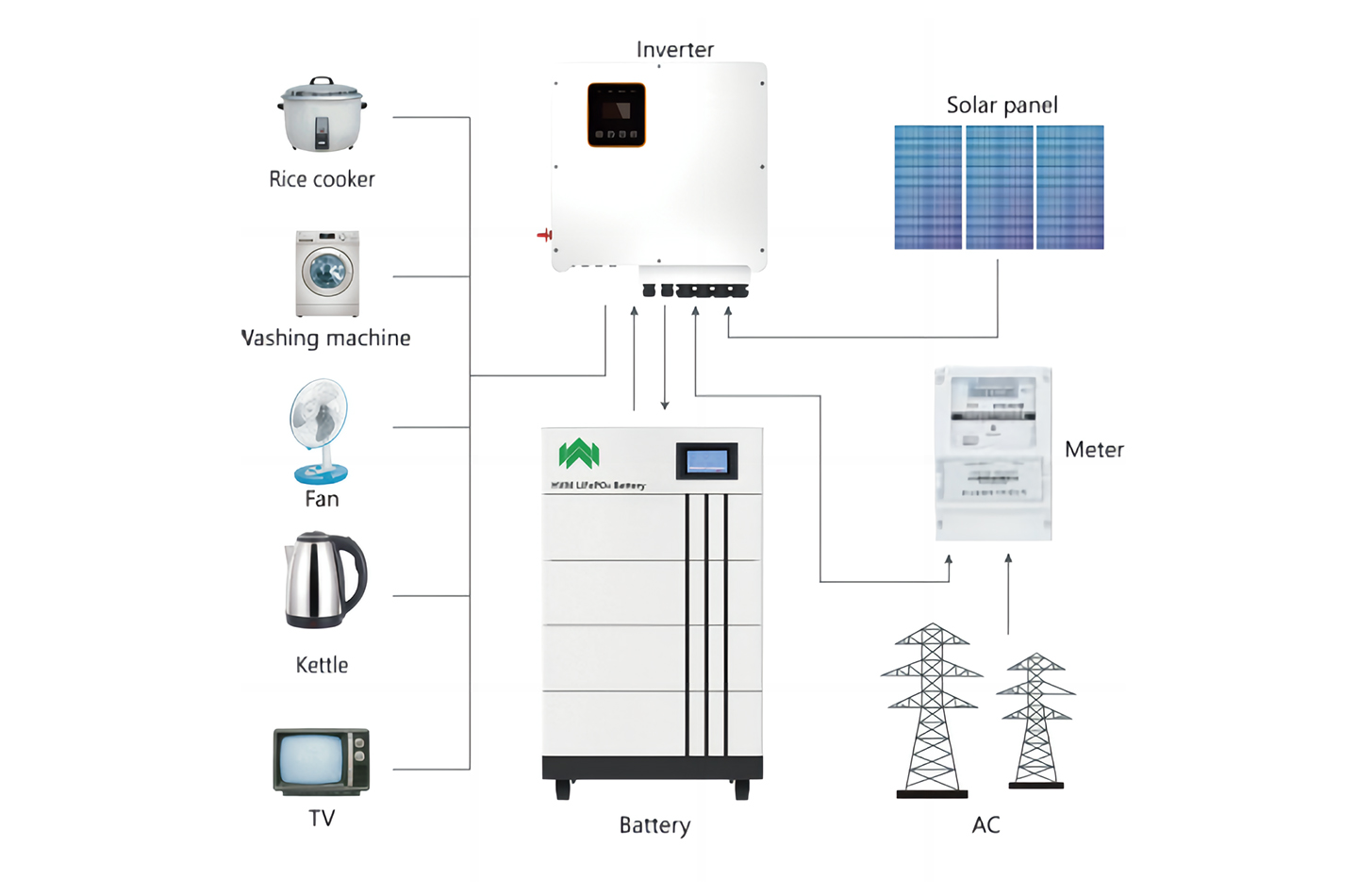

Connection Diagram
