High-Power Continuous 3C Discharge LF-512100 (51.2V 100AH)
Product Features
1. Longer cycle life: The battery pack can have a cycle life of 3000 times, which is 6 times that of lead-acid batteries, effectively saving replacement and maintenance costs.
2. Lighter weight: High energy density, weighing 40% of lead-acid batteries.
3. High discharge rate: Provides twice the discharge rate of lead-acid batteries while maintaining a capacity of over 95%.
4.Wider temperature range: -20~60 °C.
5. Superior safety: Iron(III) phosphate physical and chemical substances eliminate the risk of explosion or fire caused by high temperature shock, overcharge or short circuit.
Product Introduction
♦ The golf cart power supply uses Lithium iron phosphate power cell. Continuous 3C discharge, high-power output, 3000 charging and discharging cycles.
♦ Equipped with an intelligent BMS management system, with multiple protections - overcharging and discharging, voltage, current, and temperature protection. Support solar and mains charging.
♦ It can work in an environment of -20 ℃ -60 ℃.
Product Specification
| Electrical Characteristics | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Power | 5120Wh | |
| Composition | 1651P | |
| Cycle Life | ≥3000 cycles @80%DOD @35°C | |
| Monthly Self Discharge | 3%/month | |
| Charge Efficiency | ≥97% | |
| Discharge Efficiency | ≥98% | |
| Charging Standards | Recommended Charging Voltage | 56.8V |
| Recommended Charging Current | 20A | |
| Maximum Charge Voltage | 57.6V | |
| Maximum Charging Current | 100A | |
| Discharge Standard | Recommended Discharge Current | 50A |
| Maximum Discharge Current | 100A | |
| Discharge Termination Voltage | 43.2V | |
| Temperature | Charging Temperature Range | 0C~45°C |
| Discharge Temperature Range | -20°C~60°C | |
| Storage Temperature Range | 0°C~40C | |
| Others | Protection Grade | IP65 |
| Shell Material | Metal box | |

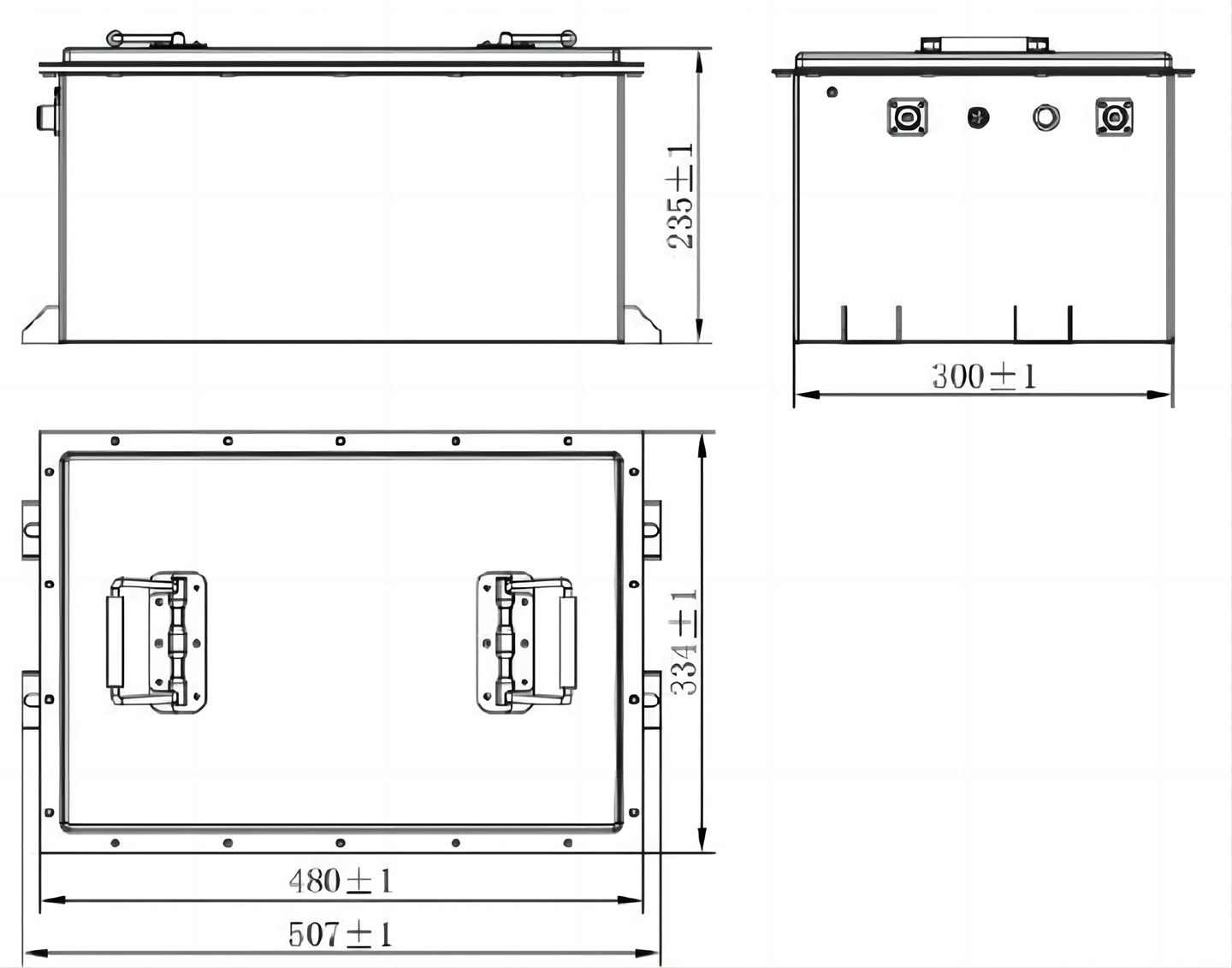

| Overall Dimensions | 480x334x235mm | |
| Weight | 46.5kg | |
| Options | Battery display screen, charger, charging socket |

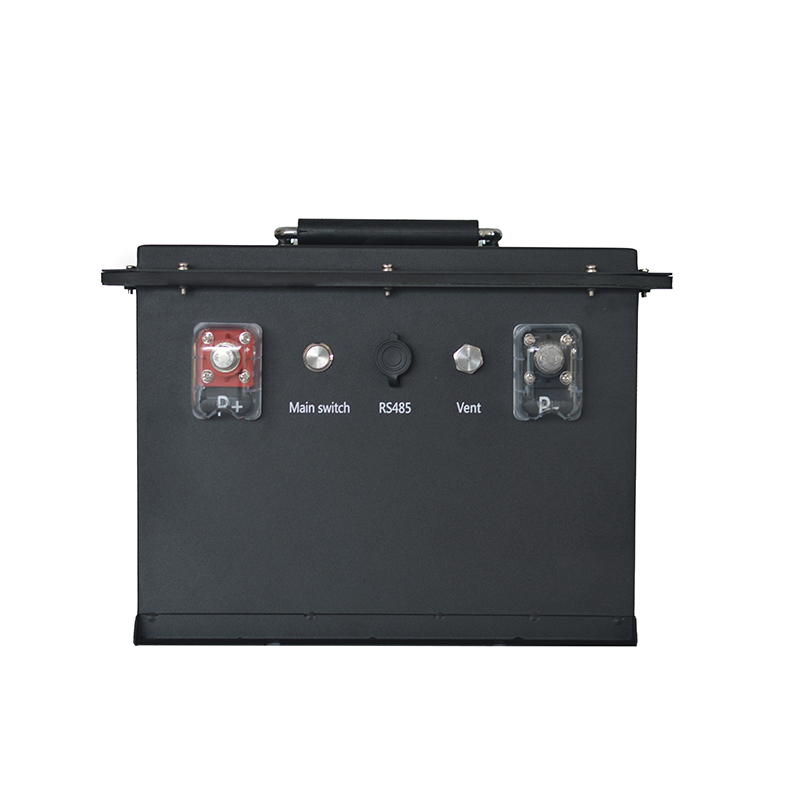

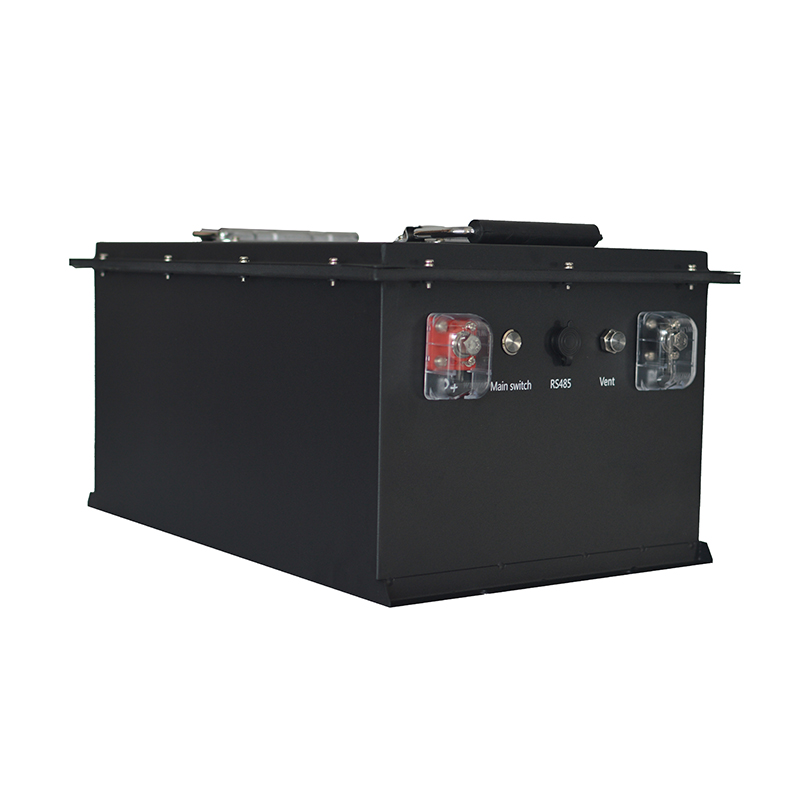

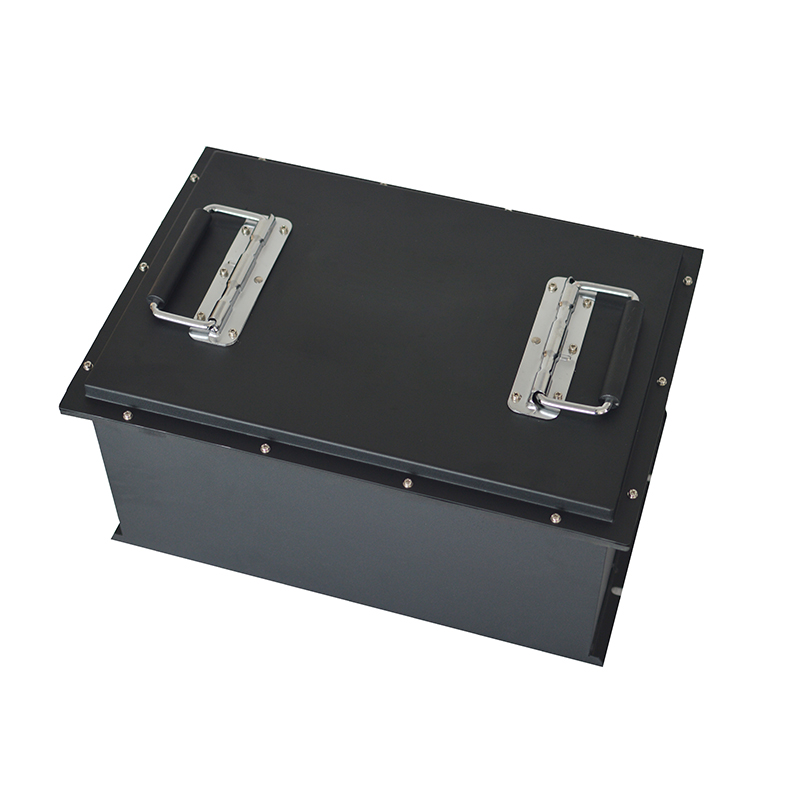

Product Details Display
Application
Low-speed vehicle
Golf Course Car
Electric Patrol Car
Sightseeing Bus
Scooter
FAQ
1.What are the application areas of this battery？
This battery is mainly suitable for golf carts, with built-in car grade power cells.
2.Does this battery support customization？
Yes, some golf carts have size requirements where the power is placed. We can customize according to the requirements.
