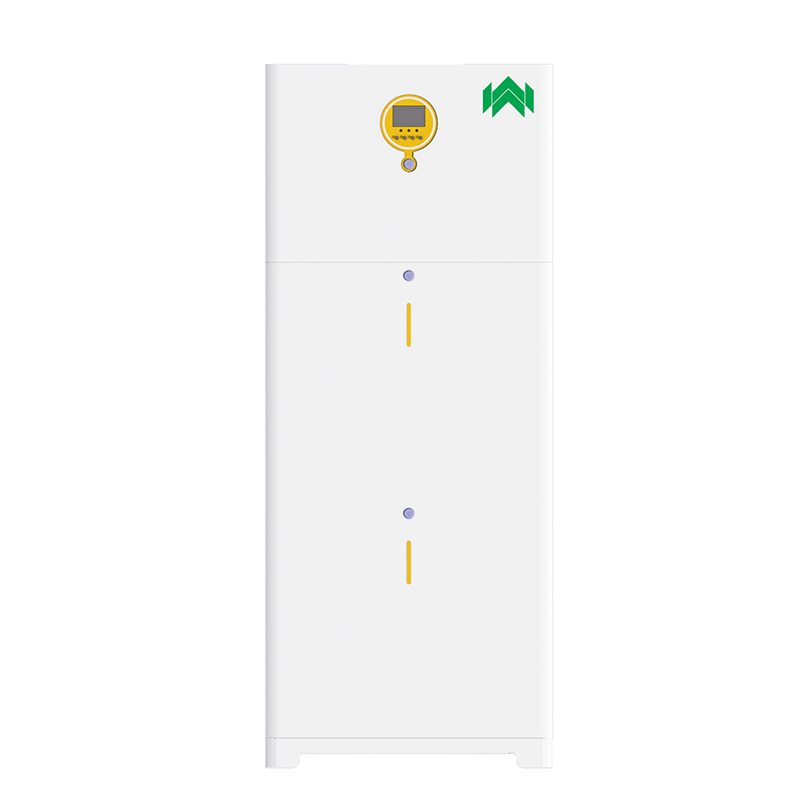

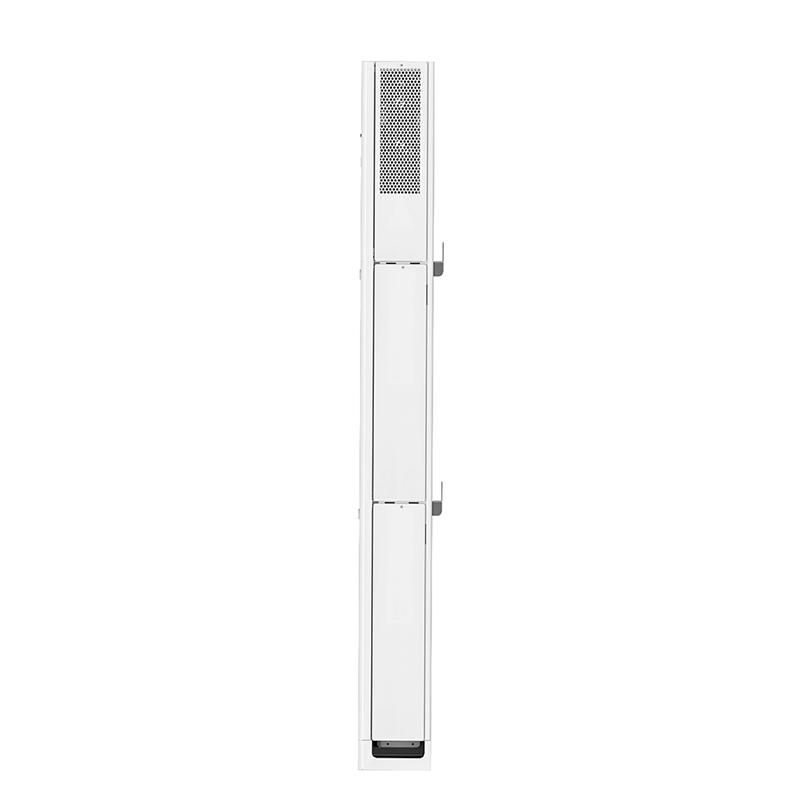

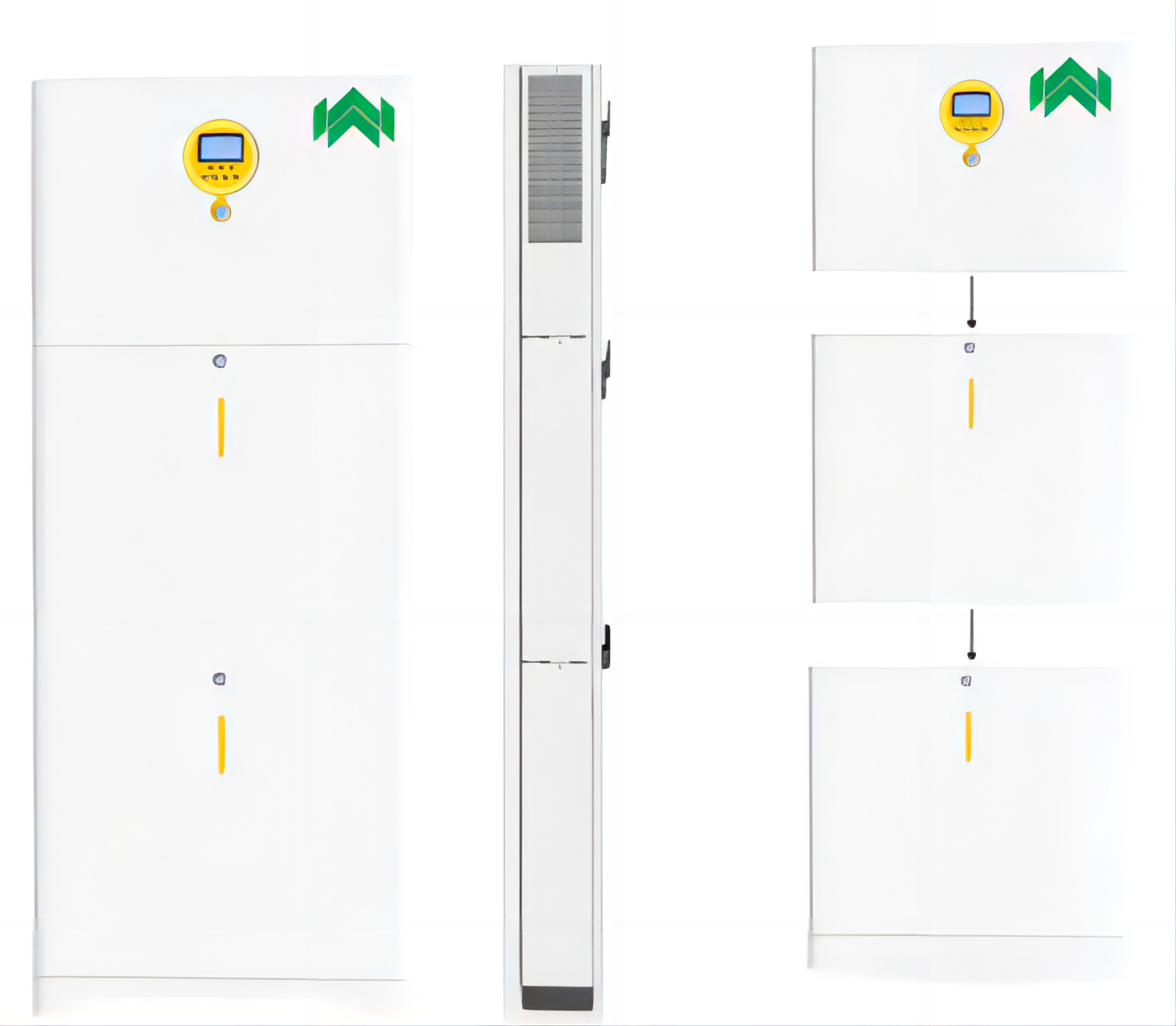

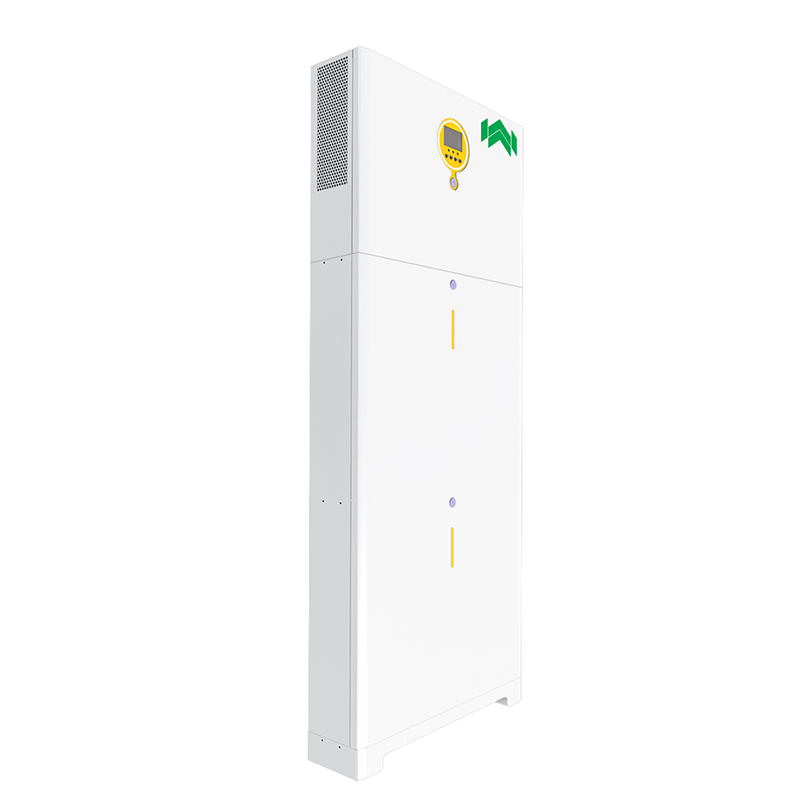

Cabinet stacked home energy storage all-in-one
Product Introduction
This cabinet stacked home energy storage all-in-one machine has a wide range of working environments and strong adaptability; Long service life, up to 6000+cycles, it is a high-quality LiFePO4 battery, safe and reliable, with a metal shell, waterproof and explosion-proof; Supports plug and play, eliminates wire clutter, eliminates the need for matching and debugging, facilitates installation, simple operation, and easy to quickly get started; Equipped with multifunctional design, large LCD display, and beautiful appearance; Support WIFI to view real-time data through the app.
Product Specification
| Inverter Module | PC-AIOV05C-220 | Can Be Set |
|
Output |
||
| Rated Output PowerMax. Peak | 5,000W | |
| Max. Peak Power | 10,000VA | |
| Load Capacity of Motor | 4HP | |
| Wave Form | PSW ( Pure Sine Wave) | |
| Rated Output Voltage | 220Vac (single-phase) | √ |
| Max. Parallel Capacity | 2units (up to10kW) | √ |
| Output Mode | Off-grid / Hybrid / On-grid | √ |
|
Solar Input |
||
| Solar Charge Type | MPPT | |
| Max. Solar Array Power | 5,500W | |
| Max. Solar Open Circuit Voltage | 500Vdc | |
| Grid Generator Input | ||
| Input Voltage Range | 90~280Vac | |
| Bypass Overload Current | 40A | |
| Battery Charging | ||
| Max. Solar Charging Current | 100A | √ |
| Max. Grid/Generator Charging Current | 60A | √ |
|
General |
||
| Dimension | 400*580*145mm | |
| Weight(Kg) | ~18Kg | |
| Battery Module | PC-AIOV05B | Can Be Set |
| Battery Power | 5.12kwh | |
| Rated Voltage | 51.2V | |
| Rated Capacity | 100Ah | |
| Battery Type | Prismatic LFP | |
| Cycling Life Span | ≥6000(80%DOD,.5C, 25°C) | |
| Max.Parallel Capacity | 4units (up to 20.48kWh) | √ |
| Dimension | 480x580x145mm | |
| Weight(Kg) | ~45Kg | |
| Standard | UN38.3,MSDS,UL1973,IEC62619:2017,ENIEC61000-3-2,ENIEC61000-6-1,ROHS | |

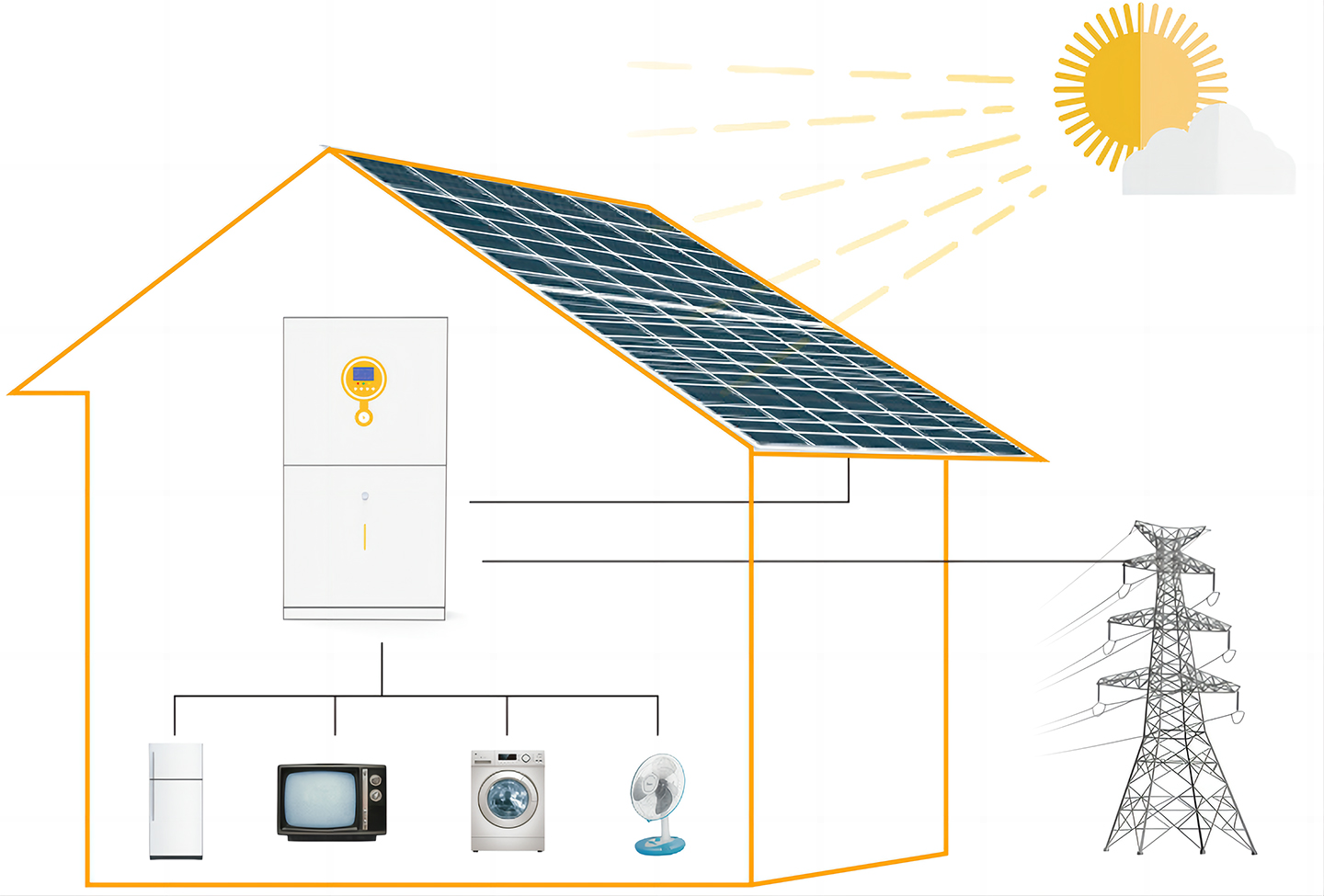

Connection Diagram

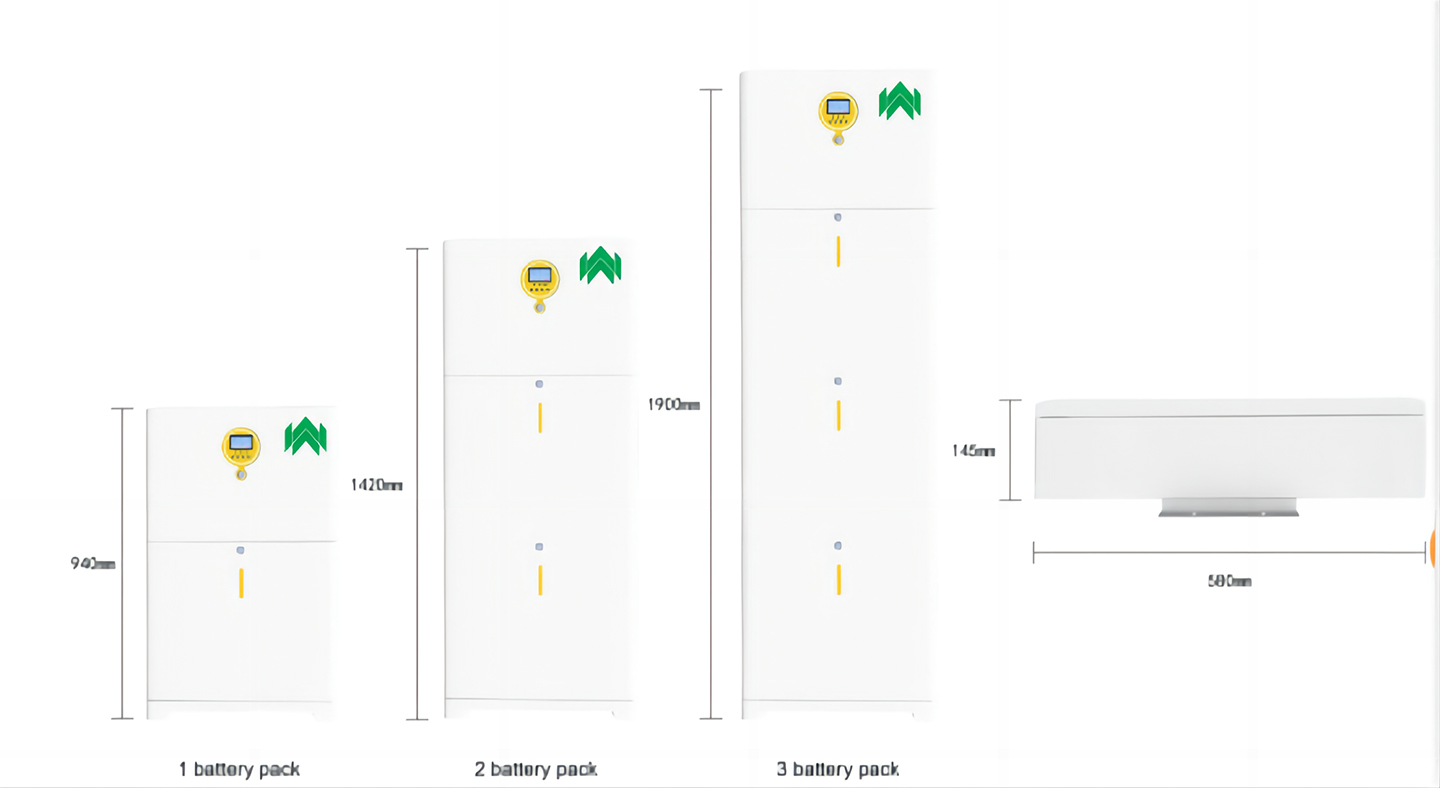

Parallel Structure Diagramq
